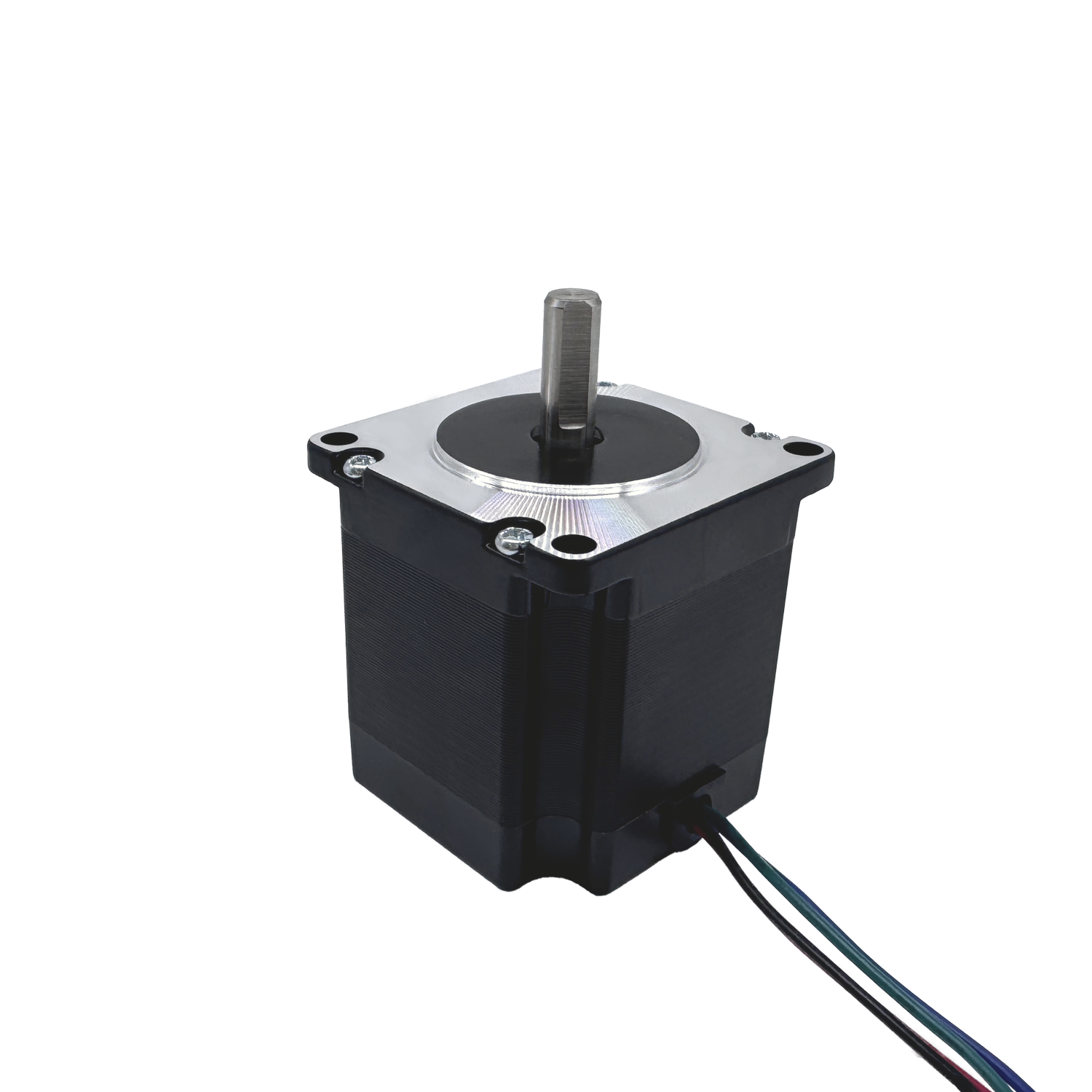

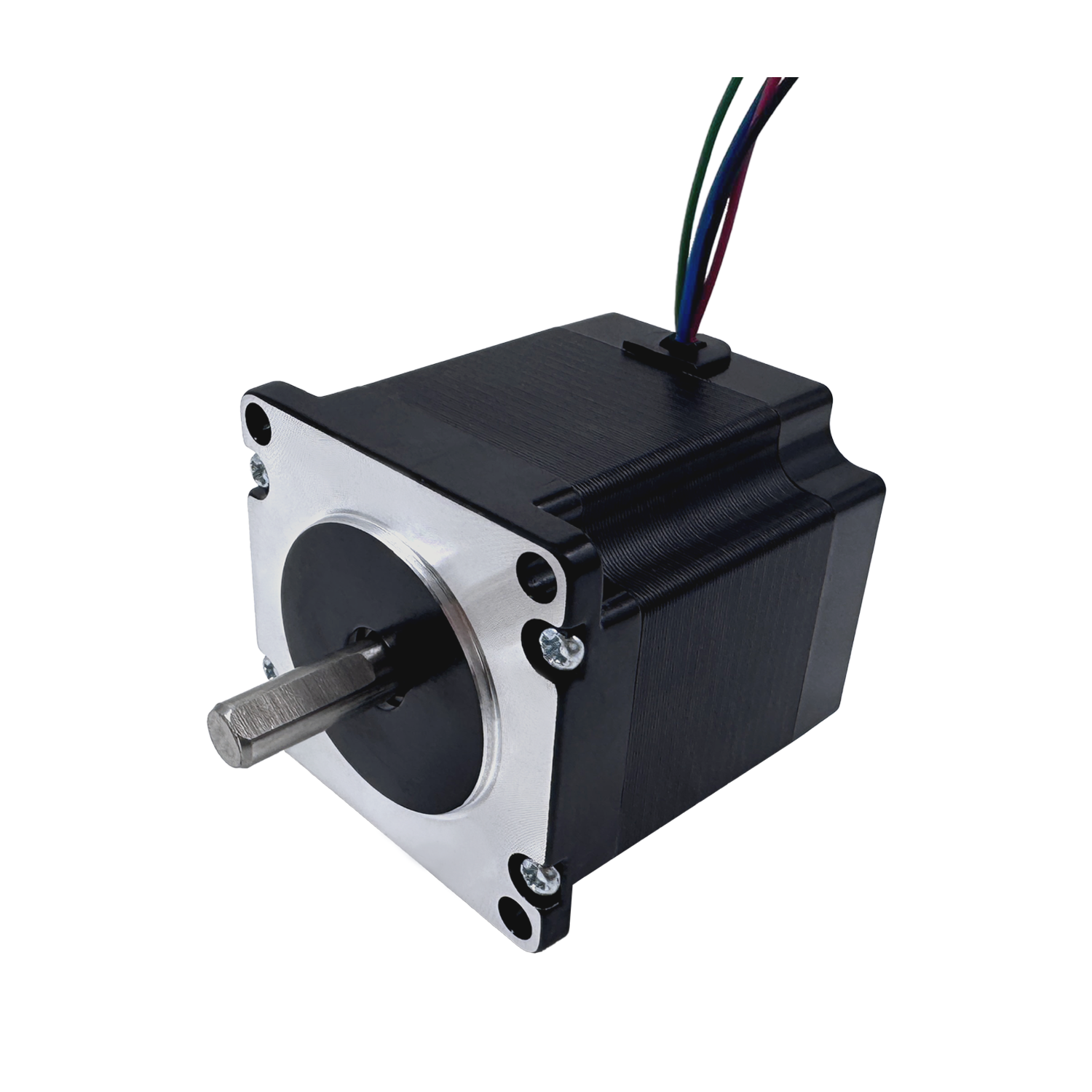

NEMA 23 57x57x56mm 1.8deg 2.8A 1Nm 4 Lead 600mm Wire Bipolar Stepper Motor

NEMA 23 57x57x56mm 1.8deg 2.8A 1Nm 4 Lead 600mm Wire Bipolar Stepper Motor

Model Number: 57BYGH5601

Manufacturer Part Number: 57BYGH225-2N-21DH

The 57BYGH5601 Stepper Motor features high-precision 1.8° step angle, rated current of 2.8A, and holding torque of 1Nm. Equipped with 4 leads and 600mm wire, it is ideal for CNC machines, 3D printers, and various automation applications. Durable and reliable, providing stable performance for your automation projects.

Price: $ 8 / pcs

Quantity:
Availability:


min order: 1 pcs max order: 5000 pcs

View wholesale prices View wholesale prices Quantity Price ≥500 $-0.5 sign in to view wholesale price
Inquire Add to Basket

Model:
57BYGH5601
Brand:
SY Motor
Code:
57BYGH225-2N-21DH

Operating Voltage: 12 - 36V

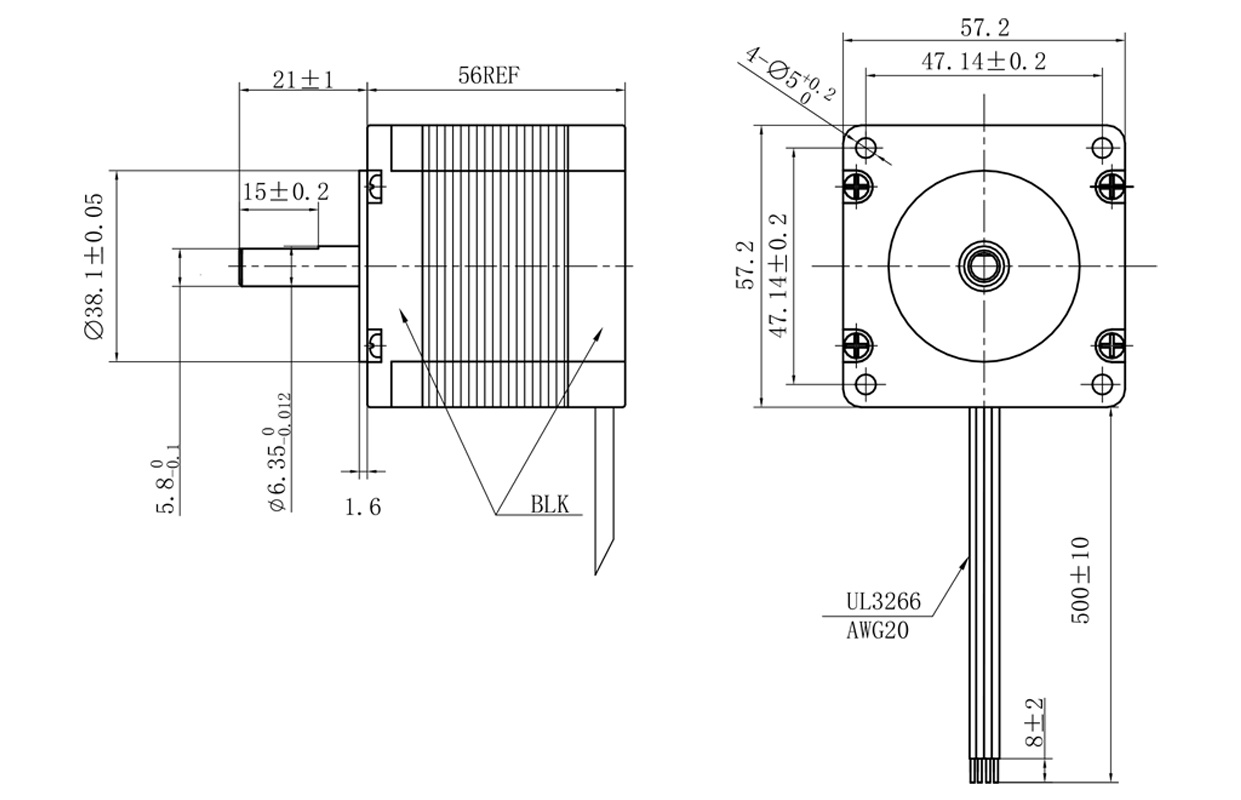

Motor Body Length: 56mm Max
Shaft Type: D Cut
Shaft Diameter: Ø6.35mm
Shaft Length: 21mm
Rated Voltage: 2.52V
Cuurent: 2.8A/ Phase
Step Angle: 1.8 degree
Number of phase： 2
Phase resistance: 0.9±0.1Ω/Phase
Phase inductance: 2.5x(1±20%)mH/Phase
Motor holding torque: 1.0 N.m
Number of Leads: 4
Wire Length: 500(±10)mm
Maximum NO-load starting frequency: ≥ 1500 PPS(Half step)
Maximum NO-load operating frequency： ≥ 2500 PPS(Half step)
Insulation resistance: ≥100MΩ(DC500V)
Insulation Class: Class B
Weight: 0.7 kg
