NEMA 17 42x42x40mm 1.8deg 1.7A 0.48Nm 4 Lead 500mm XHP Connector 3D printer Bipolar Stepper Motor

NEMA 17 42x42x40mm 1.8deg 1.7A 0.48Nm 4 Lead 500mm XHP Connector 3D printer Bipolar Stepper Motor

Model Number: 42BYGH40

Manufacturer Part Number: 42BYGH440-A-24HDN

42BYGH40 Stepper Motor

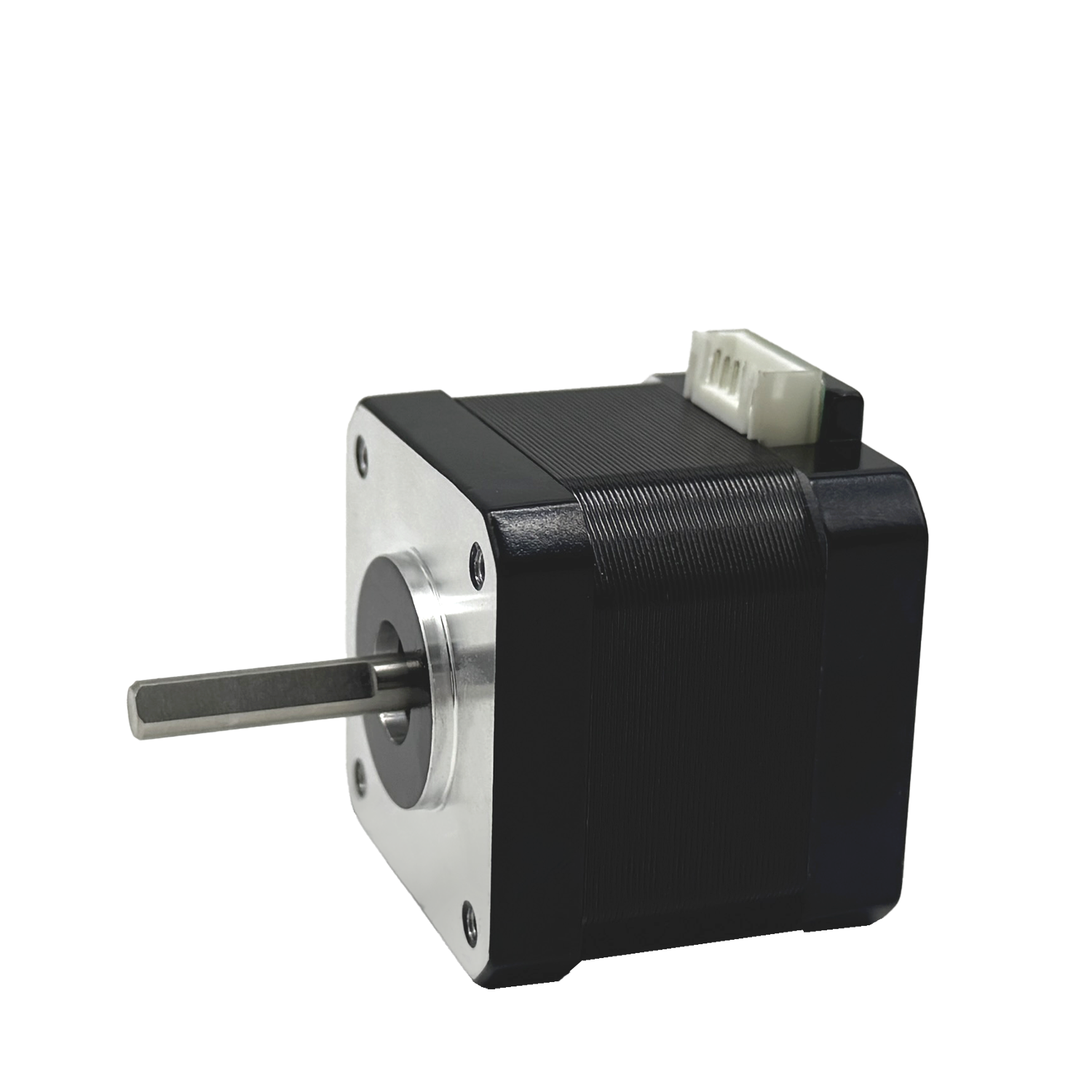

Compact 42 series bipolar stepper motor with 1.8° step angle, rated 1.7A, and holding torque of 0.48Nm. D-shaft Ø5mm, 24mm length, motor height 40mm.

Applications:
Suitable for 3D printers, mini CNC machines, desktop automation devices, robotics, and other precision equipment requiring compact, reliable motion control.

Price: $ 3.5 / pcs

Quantity:
Availability:


min order: 1 pcs max order: 5000 pcs

View wholesale prices View wholesale prices Quantity Price ≥500 $-0.2 sign in to view wholesale price
Inquire Add to Basket

Model:
42BYGH40
Brand:
SY Motor
Code:
42BYGH440-A-24HDN

Operating Voltage: 12V

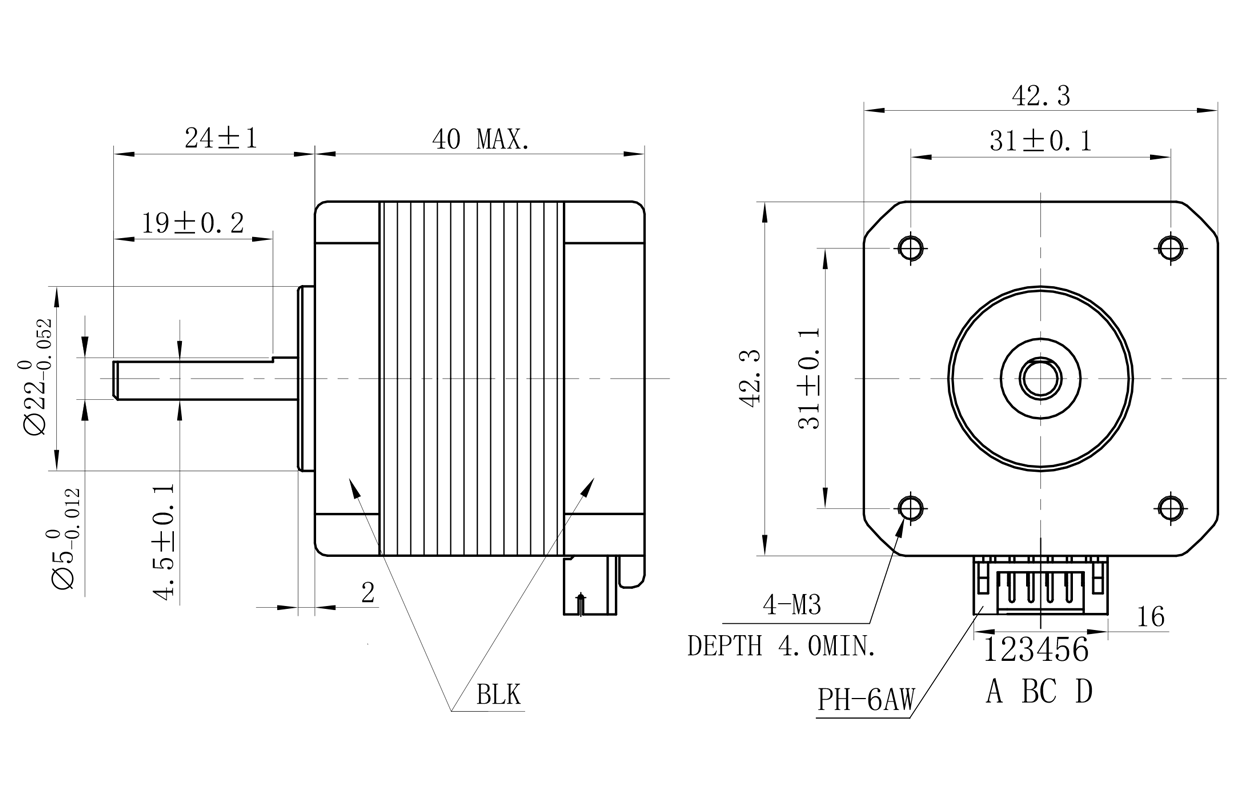

Motor Body Length: 40mm
Shaft Length: 24mm
Shaft Diameter: Ø5mm
Shaft Type: D Cut
Flat Width: 4.5mm
Rated Voltage: 1.9V
Cuurent: 1.2A/ Phase
Step Angle: 1.8 degree
Number of phase： 2
Phase resistance: 1.9x(1±10%)Ω/Phase
Phase inductance: 3.6x(1±20%)mH/Phase
Motor holding torque: 0.48 N.m
Number of Leads: 4
Wire Length: 500(±10)mm
Connector: PHR6 - XHP4
Maximum NO-load starting frequency: ≥ 1500 PPS(Half step)
Maximum NO-load operating frequency： ≥ 2500 PPS(Half step)
Insulation resistance: ≥100MΩ(DC500V)
Insulation Class: Class B
Weight: 0.3 kg
