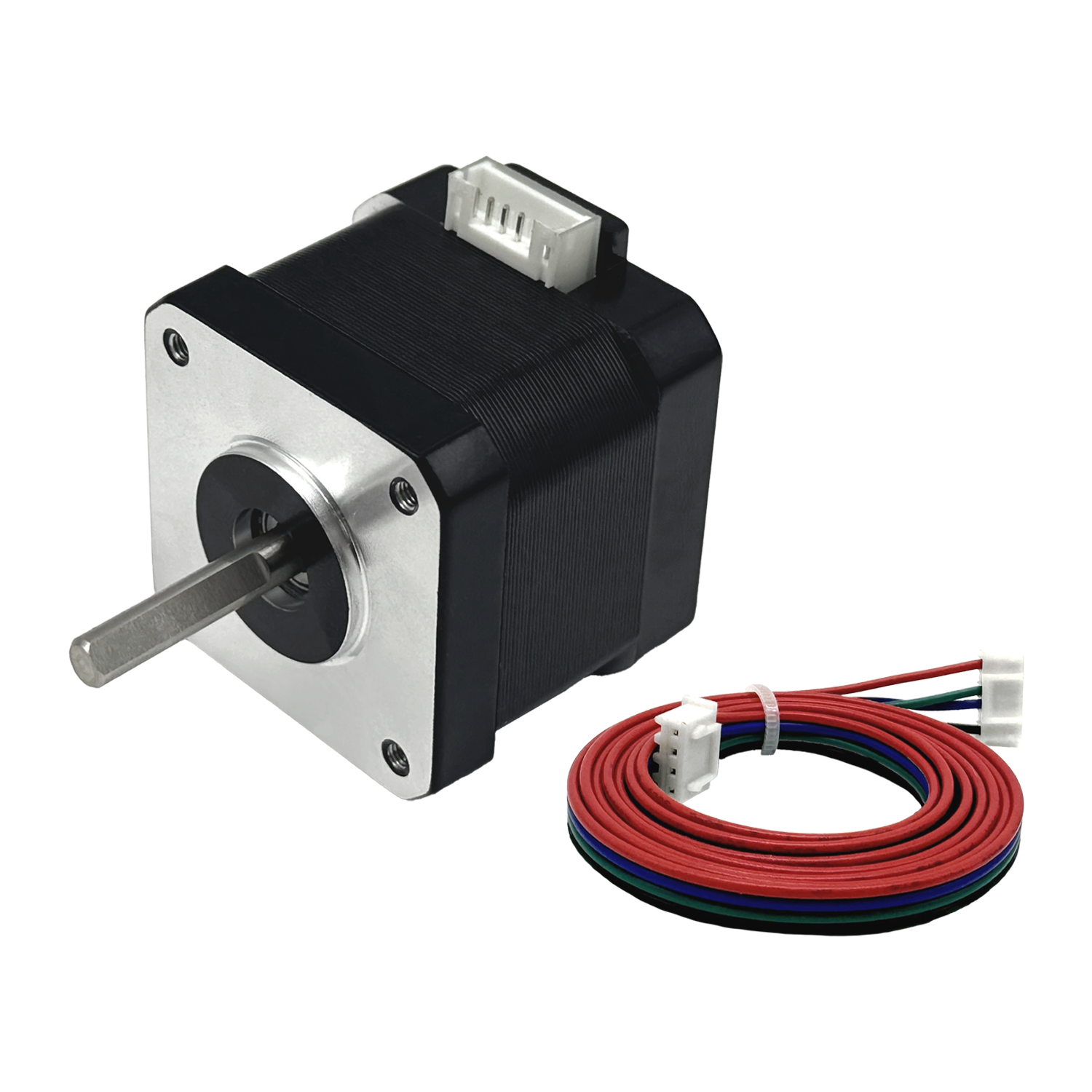

Nema 17 42x42x38mm 1.8deg 1.5A 0.42Nm 4 Lead 500mm Wire Connector Bipolar Stepper Motor

Model Number: 42BYGH3801

Manufacturer Part Number: 42BYGH2012-A-24DHN

42BYGH3801 Stepper Motor

Compact 42 series bipolar stepper motor with 1.8° step angle, rated 1.5A, and holding torque of 0.42Nm. D-shaft Ø5mm, 23.5mm length, motor height 38mm.

Applications:
Suitable for 3D printers, mini CNC machines, desktop automation devices, robotics, and other precision equipment requiring compact, reliable motion control.

Price: $ 3.2 / pcs

Quantity:
Availability:


min order: 1 pcs max order: 5000 pcs

View wholesale prices View wholesale prices Quantity Price ≥500 $-0.2 sign in to view wholesale price
Inquire Add to Basket

Model:
42BYGH3801
Brand:
SY Motor
Code:
42BYGH2012-A-24DHN

Model Number: 42BYGH3801
Manufacturer Part Number: 42BYGH2012-A-24DHN

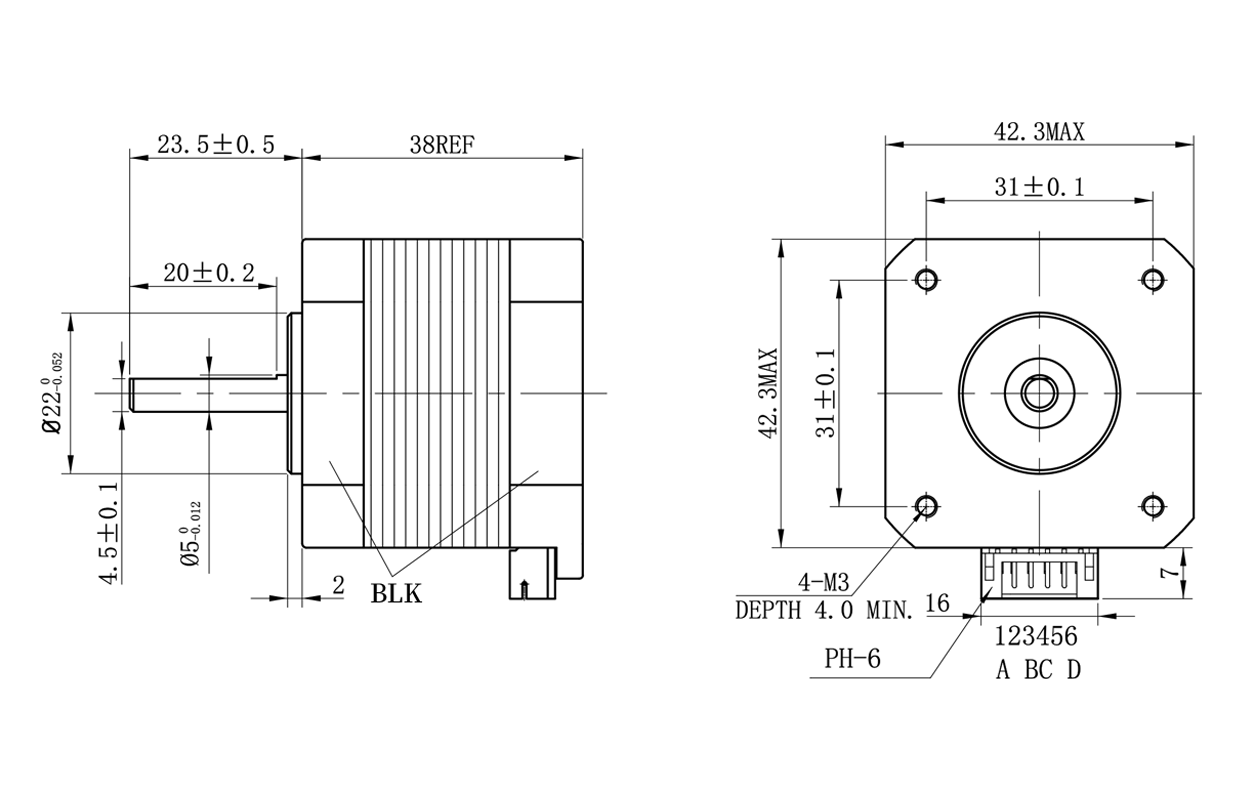

Frame Size: 42x42mm
Motor Body Length: 38mm
Shaft Length: 23.5mm
Shaft Diameter: Ø5mm
Shaft Type: D Cut
Flat Width: 4.5mm
Weight: 0.3 kg

Number of Leads: 4

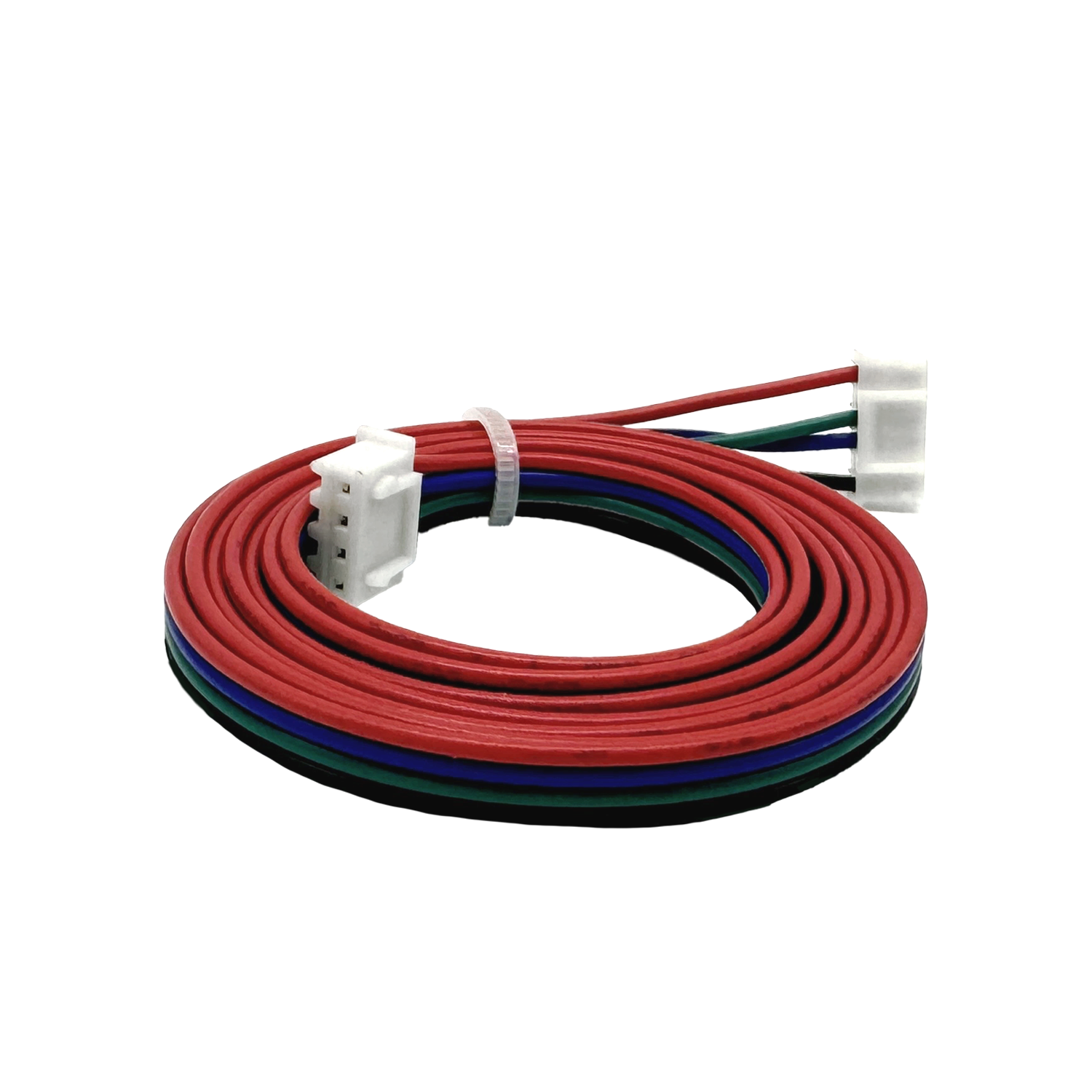

Wire Length: 500(±10)mm
Connector: PHR6 - XHP4

Operating Voltage: 12V
Rated Voltage: 3.45V
Cuurent: 1.5A/ Phase
Step Angle: 1.8 degree
Number of phase： 2
Phase resistance: 2.3x(1±10%)Ω/Phase
Phase inductance: 4.0x(1±20%)mH/Phase
Motor holding torque: 0.42 N.m
Maximum NO-load starting frequency: ≥ 1500 PPS(Half step)
Maximum NO-load operating frequency： ≥ 2500 PPS(Half step)
Insulation resistance: ≥100MΩ(DC500V)
Insulation Class: Class B
