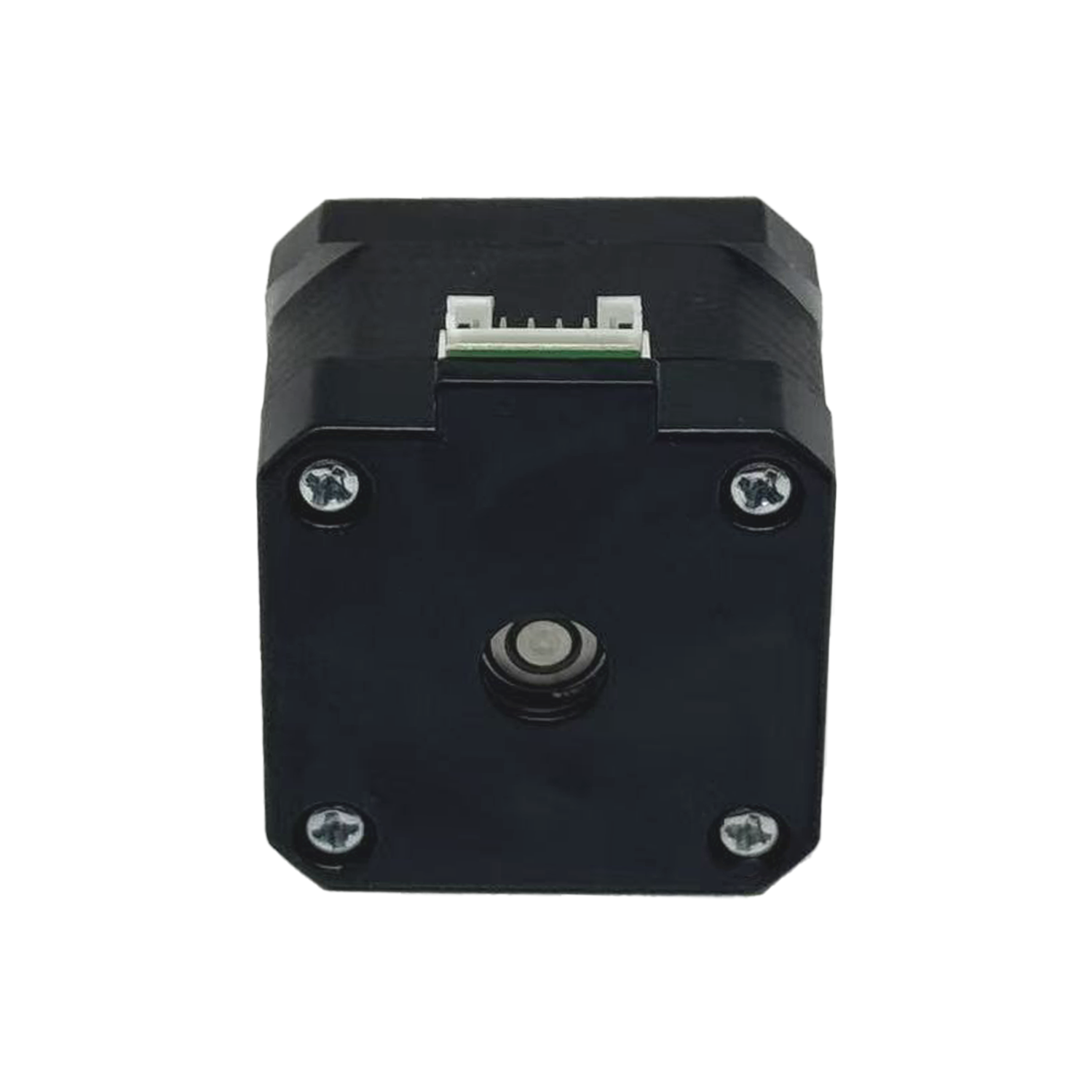

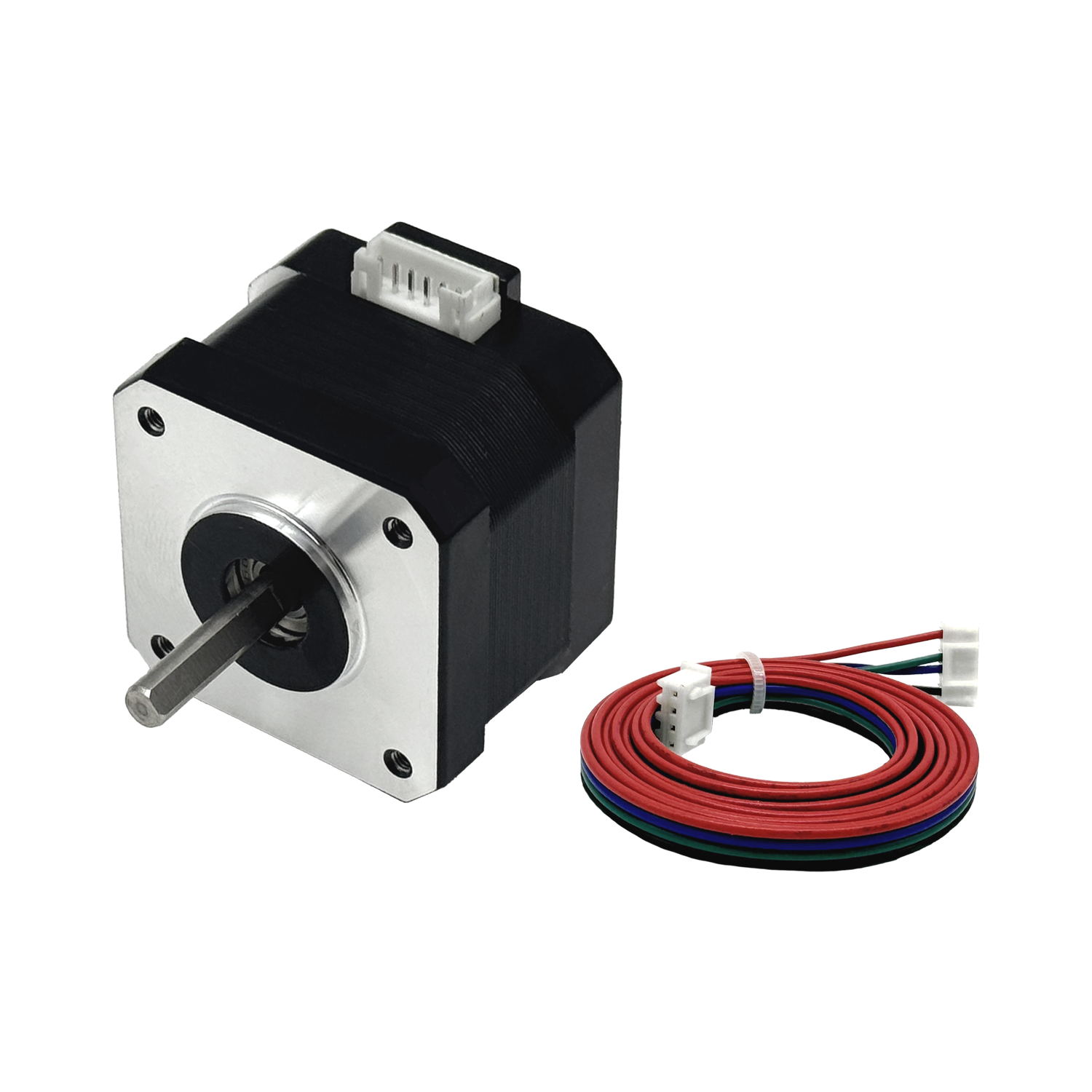

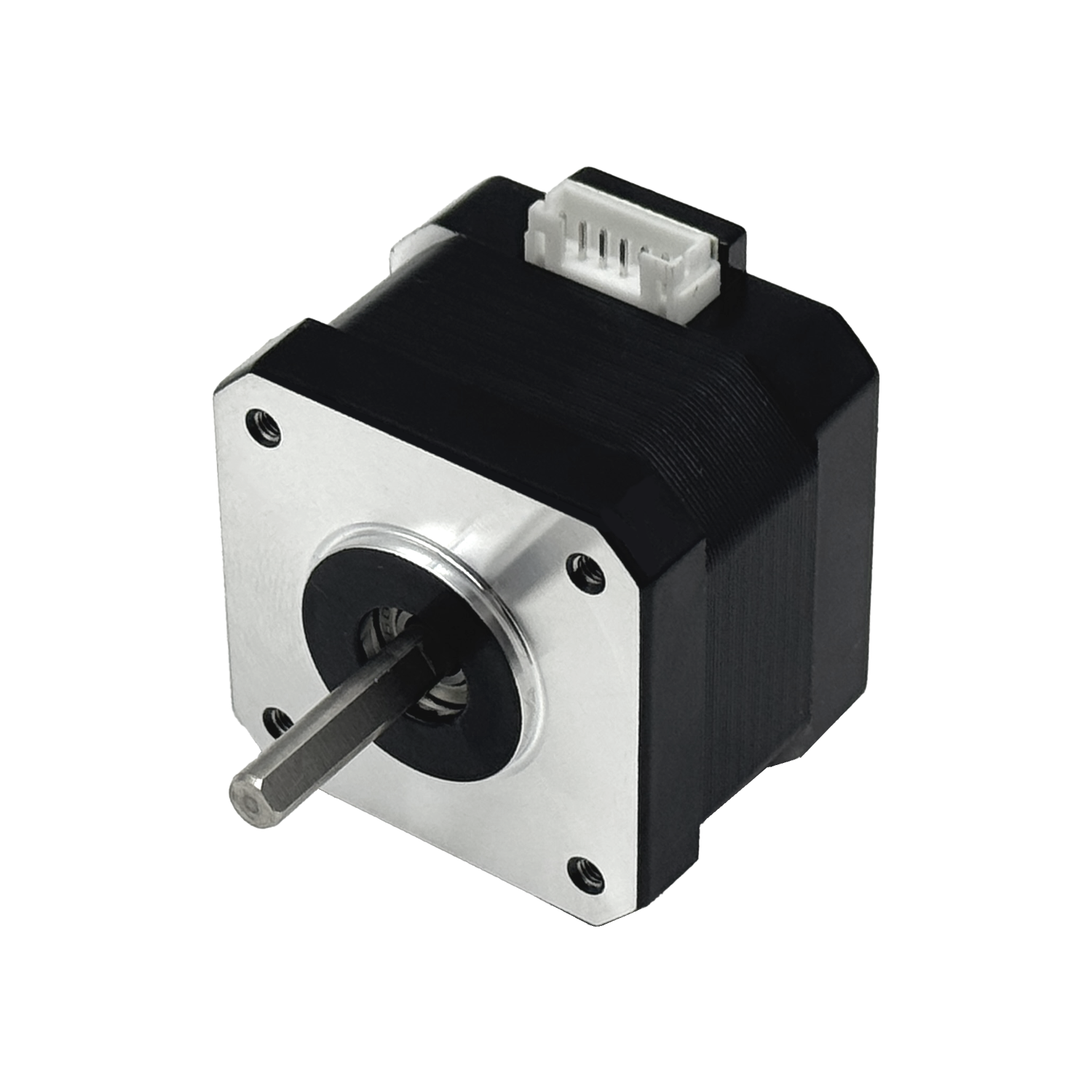

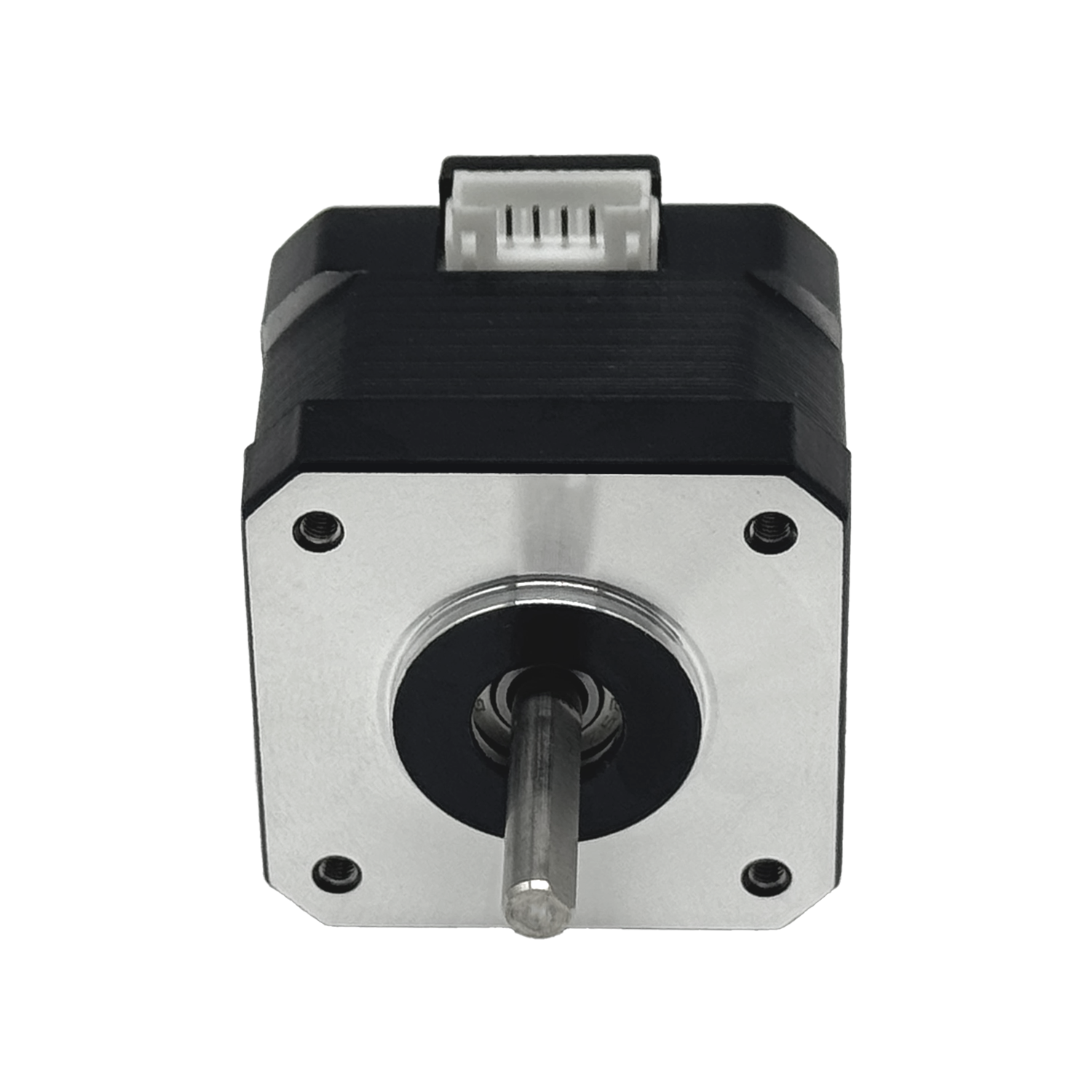

NEMA 17 42x42x34mm 1.8deg 1.2A 0.31Nm 4 Lead 500mm XHP Connector Bipolar Stepper Motor for 3D printer

NEMA 17 42x42x34mm 1.8deg 1.2A 0.31Nm 4 Lead 500mm XHP Connector Bipolar Stepper Motor for 3D printer

Model Number: 42BYGH34

Manufacturer Part Number: 42BYGH1604-A-22HDN

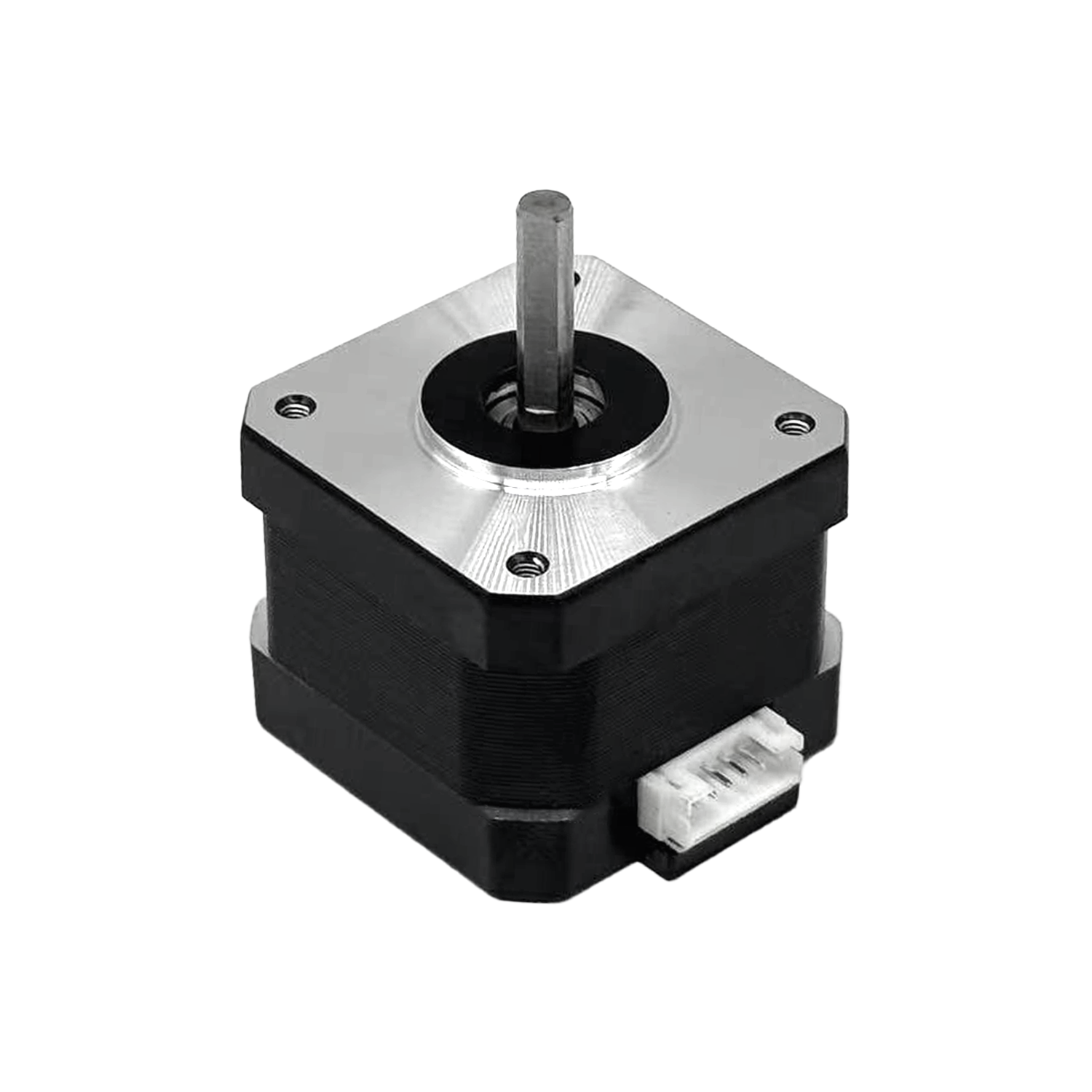

42BYGH34 Stepper Motor

Compact 42 series bipolar stepper motor with 1.8° step angle, rated 4.2V/1.2A, and holding torque of 0.31Nm. D-shaft Ø5mm, 22mm length, motor height 34mm, weight 0.3kg, with 3.5Ω resistance and 5.3mH inductance.

Applications:
Suitable for small 3D printers, mini CNC machines, desktop automation devices, robotics, and other precision equipment requiring compact, reliable motion control.

Price: $ 3 / pcs

Quantity:
Availability:


min order: 1 pcs max order: 5000 pcs

View wholesale prices View wholesale prices Quantity Price ≥500 $-0.2 sign in to view wholesale price
Inquire Add to Basket

Model:
42BYGH34
Brand:
SY Motor
Code:
42BYGH1604-A-22HDN

Operating Voltage: 12V

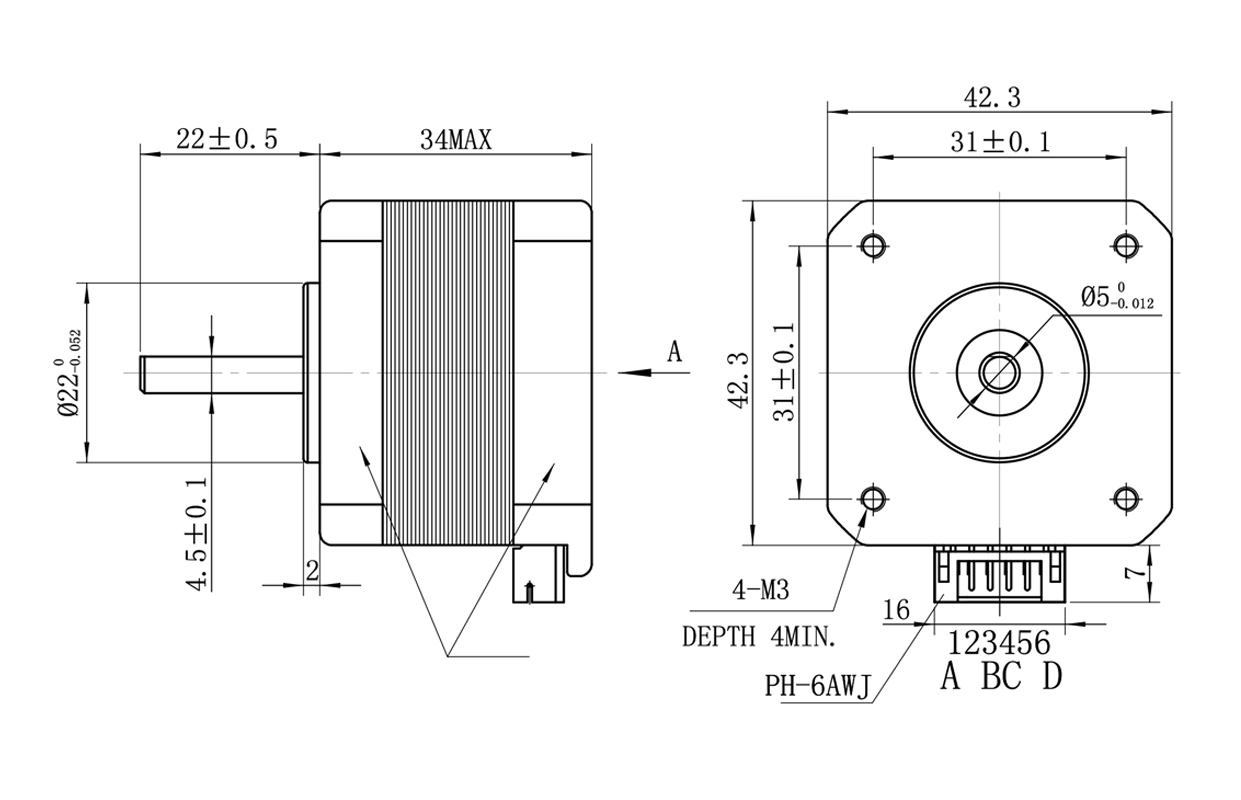

Motor Body Length: 34mm
Shaft Type: D Cut
Shaft Diameter: Ø5mm
Shaft Length: 22mm
Rated Voltage: 4.2V
Cuurent: 1.2A/ Phase
Step Angle: 1.8 degree
Number of phase： 2
Phase resistance: 3.5±0.1Ω/Phase
Phase inductance: 5.3x(1±20%)mH/Phase
Motor holding torque: 0.31 N.m
Number of Leads: 4

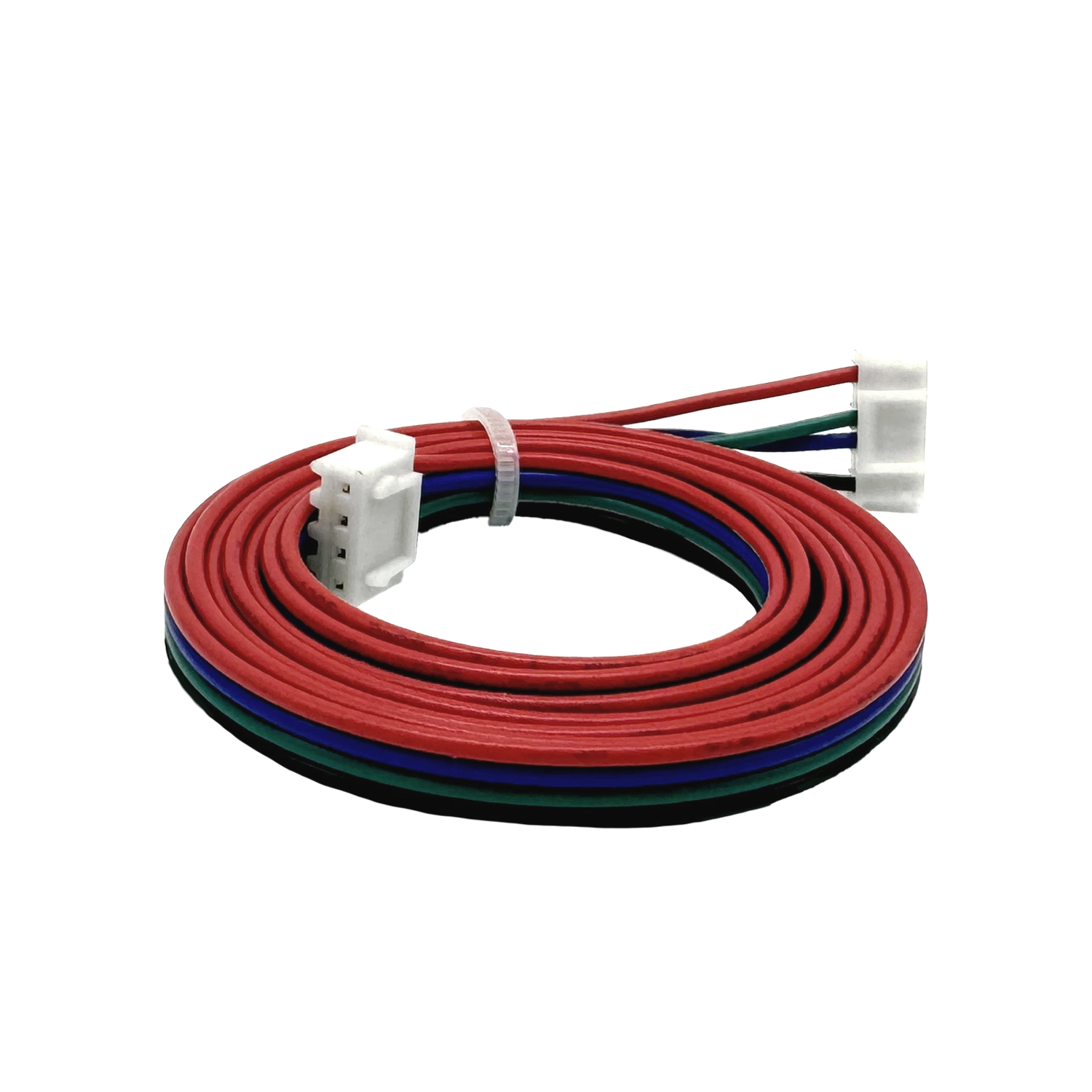

Wire Length: 500(±10)mm
Connector: PHR6 - XHP4
Maximum NO-load starting frequency: ≥ 1500 PPS(Half step)
Maximum NO-load operating frequency： ≥ 2500 PPS(Half step)
Insulation resistance: ≥100MΩ(DC500V)
Insulation Class: Class B
Weight: 0.3 kg
