Nema 11 with Pulley 28x28x40mm 1.8deg 1.2A 0.1Nm 4 Lead 75mm PHR 4Pin Connector Bipolar Stepper Motor

Nema 11 with Pulley 28x28x40mm 1.8deg 1.2A 0.1Nm 4 Lead 75mm PHR 4Pin Connector Bipolar Stepper Motor

Model Number: 28BYGH2607

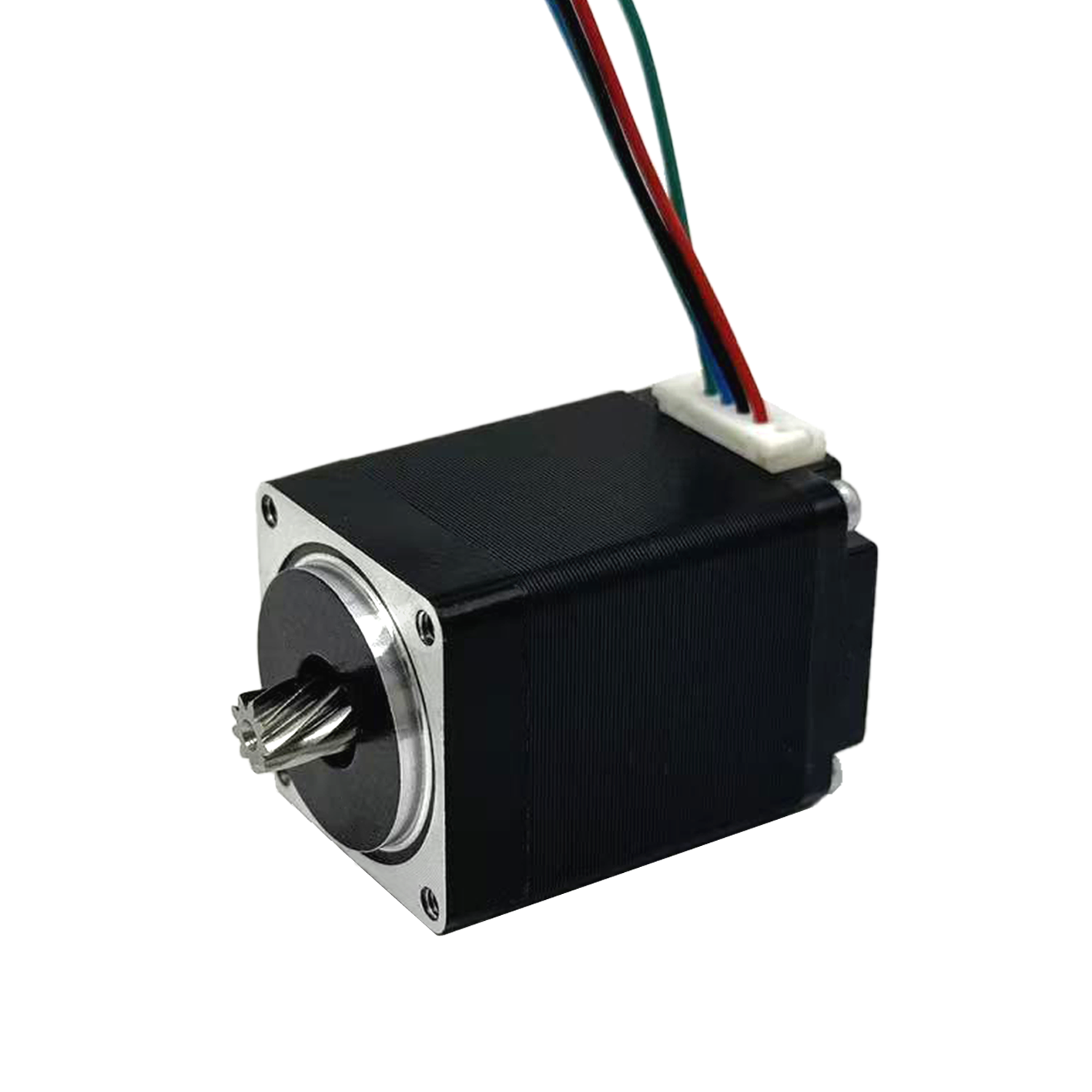

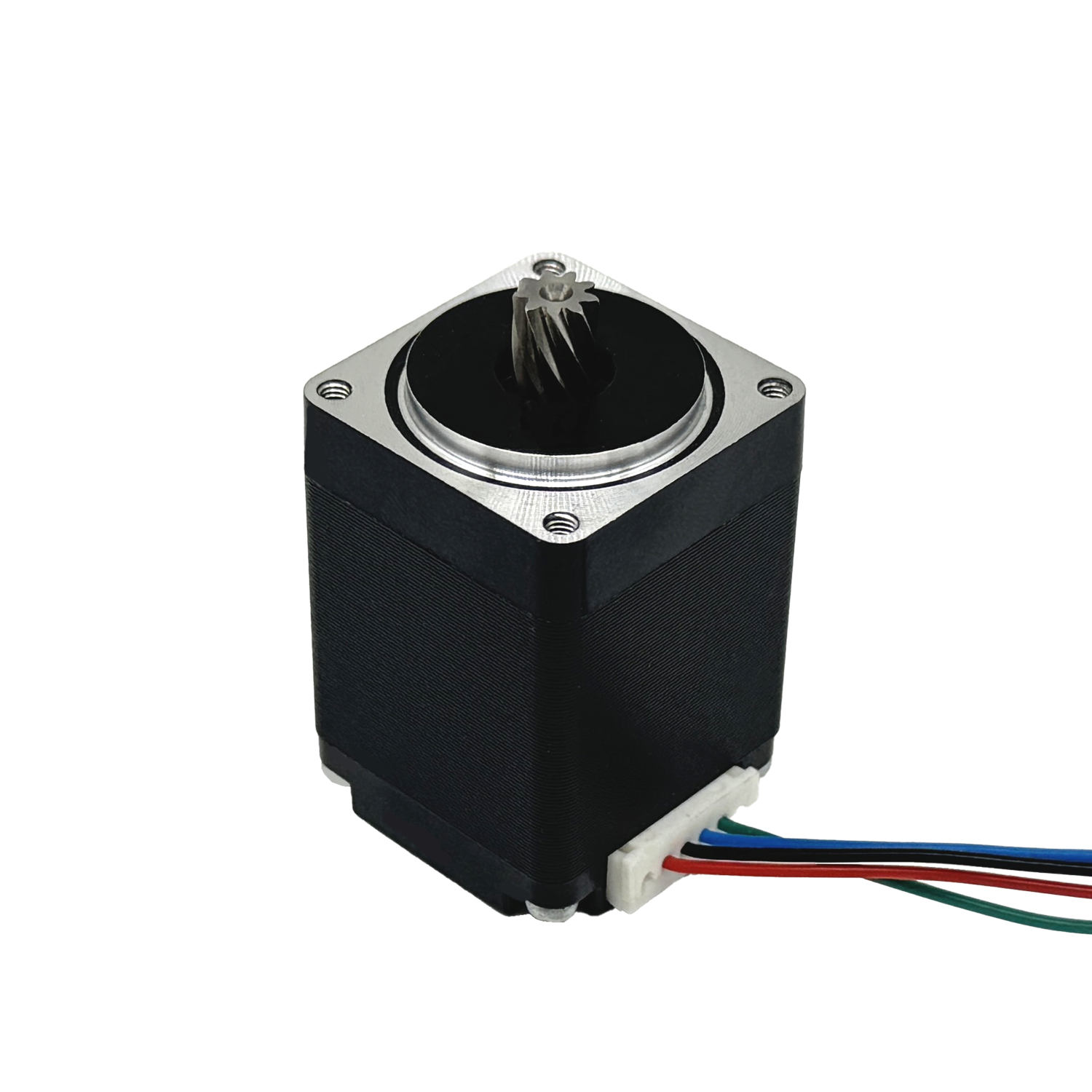

28BYGH2607 Stepper Motor

Compact 28 series bipolar stepper motor with 1.8° step angle, rated 1.2A, and holding torque of 0.10Nm. with pulley, 8.5mm length, motor height 40mm.

Applications:Suitable for 3D printers, extruders, and small automation equipment with belt drive applications.

Price: $ 5.5 / pcs

Quantity:
Availability:


min order: 1 pcs max order: 5000 pcs

View wholesale prices View wholesale prices Quantity Price ≥500 $-0.5 sign in to view wholesale price
Inquire Add to Basket

Model:
28BYGH2607
Brand:
SY Motor
Code:
28BYGH2607

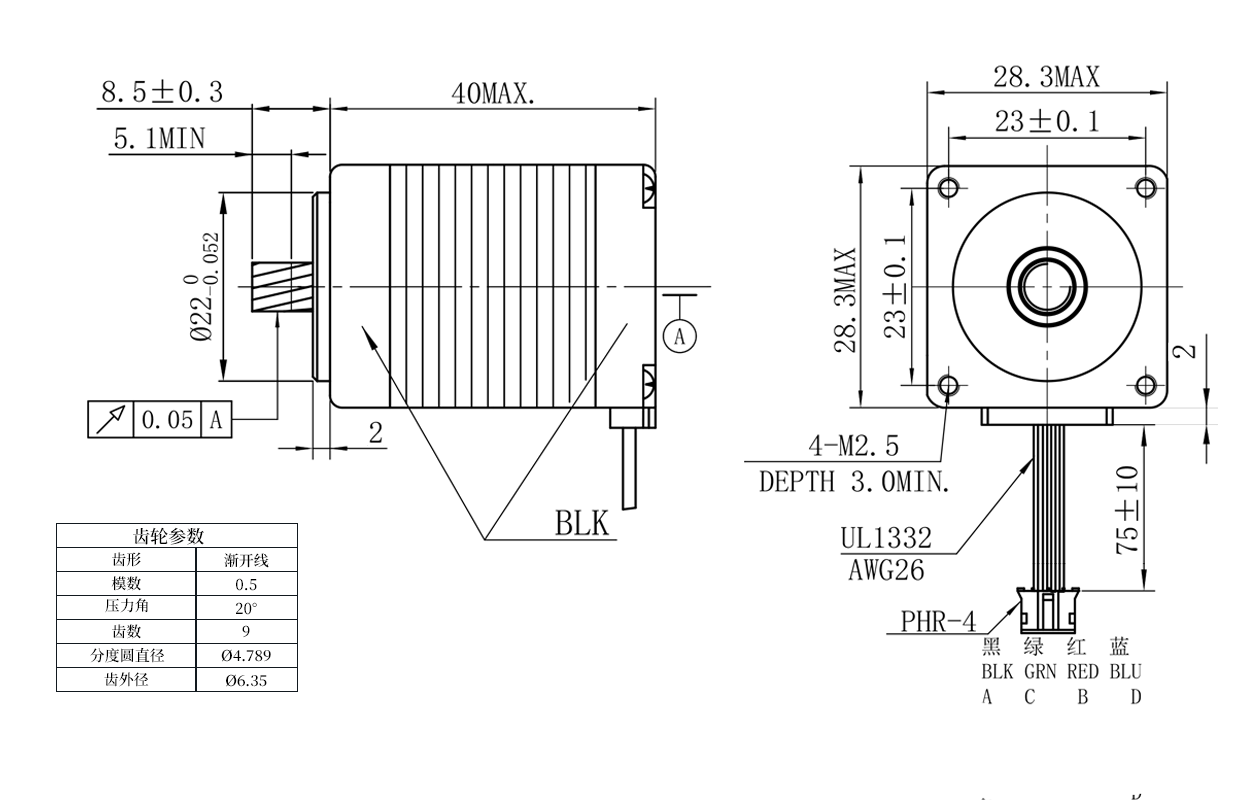

Model Number: 28BYGH2607

Frame Size: 28x28mm
Motor Body Length: 40mm
Shaft Length: 8.5mm
Shaft Diameter: Ø6.35mm pulley
Shaft Type: Pulley
Weight: 0.1 kg

Number of Leads: 4
Wire Length: 75(±10)mm
Connector: PHR6 - PHR4 pin

Operating Voltage: 12V
Rated Voltage: 2.4V
Cuurent: 1.2A/ Phase
Step Angle: 1.8 degree
Number of phase： 2
Phase resistance: 2x(1±10%)Ω/Phase
Phase inductance: 1.5x(1±20%)mH/Phase
Motor holding torque: 0.10 N.m
Maximum NO-load starting frequency: ≥ 1500 PPS(Half step)
Maximum NO-load operating frequency： ≥ 2500 PPS(Half step)
Insulation resistance: ≥100MΩ(DC500V)
Insulation Class: Class F
