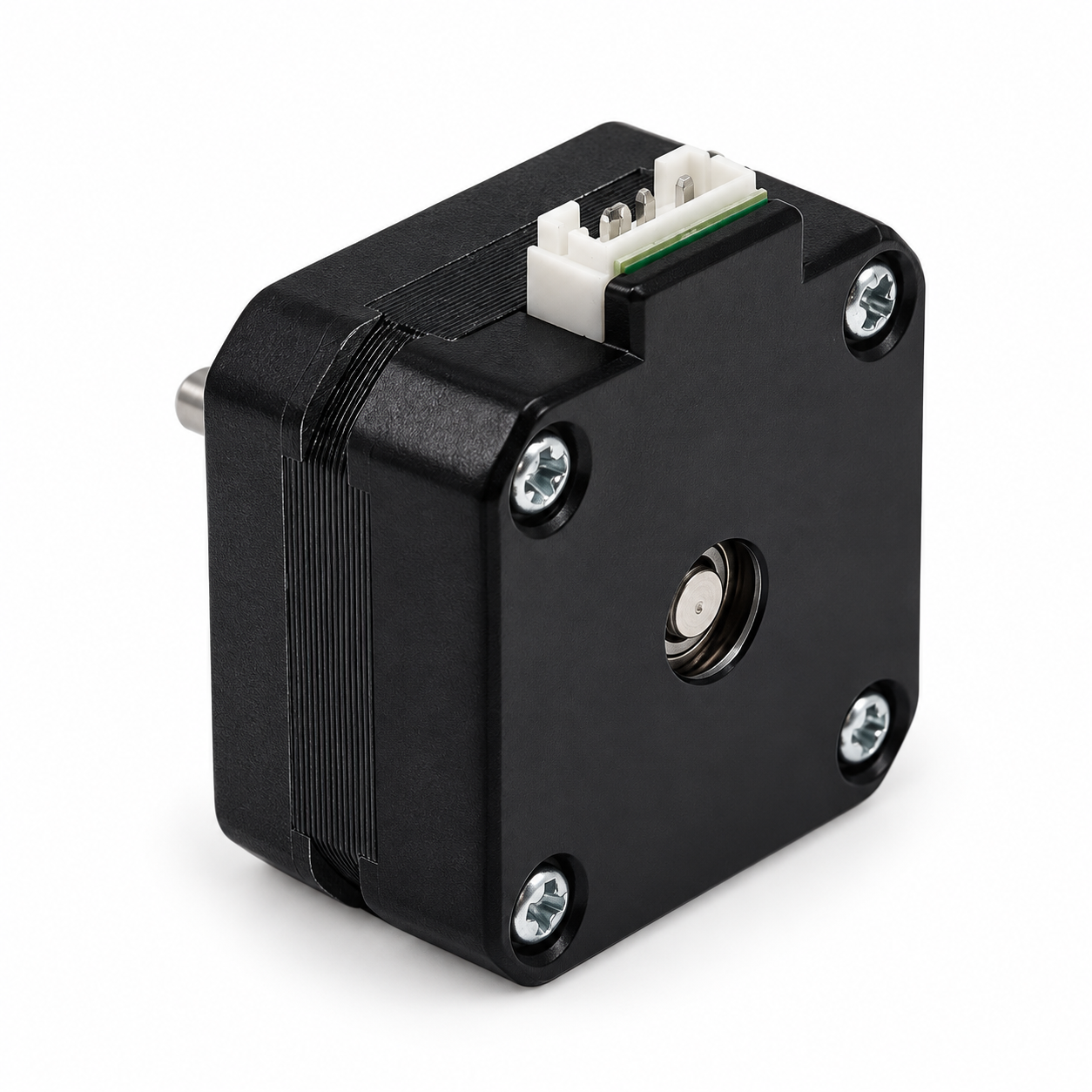

42BYGH2301
Shengyang Motor
42BYGH2303-A-22DPH
PRODUCT SPECIFICATIONS
Sales model: 42BYGH2301
Factory model: 42BYGH2303-A-22DPH
NEMA 17, frame 42.3mm max; body length 23mm
Step angle: 1.8°; phases: 2
Rated phase current: 1.0A/phase
Holding torque: ≥0.16N·m
Winding rated voltage: DC 4.2V
Driver supply: DC 12–24V with a suitable current-regulated stepper driver
Phase resistance: 4.2Ω; phase inductance: 4.0mH

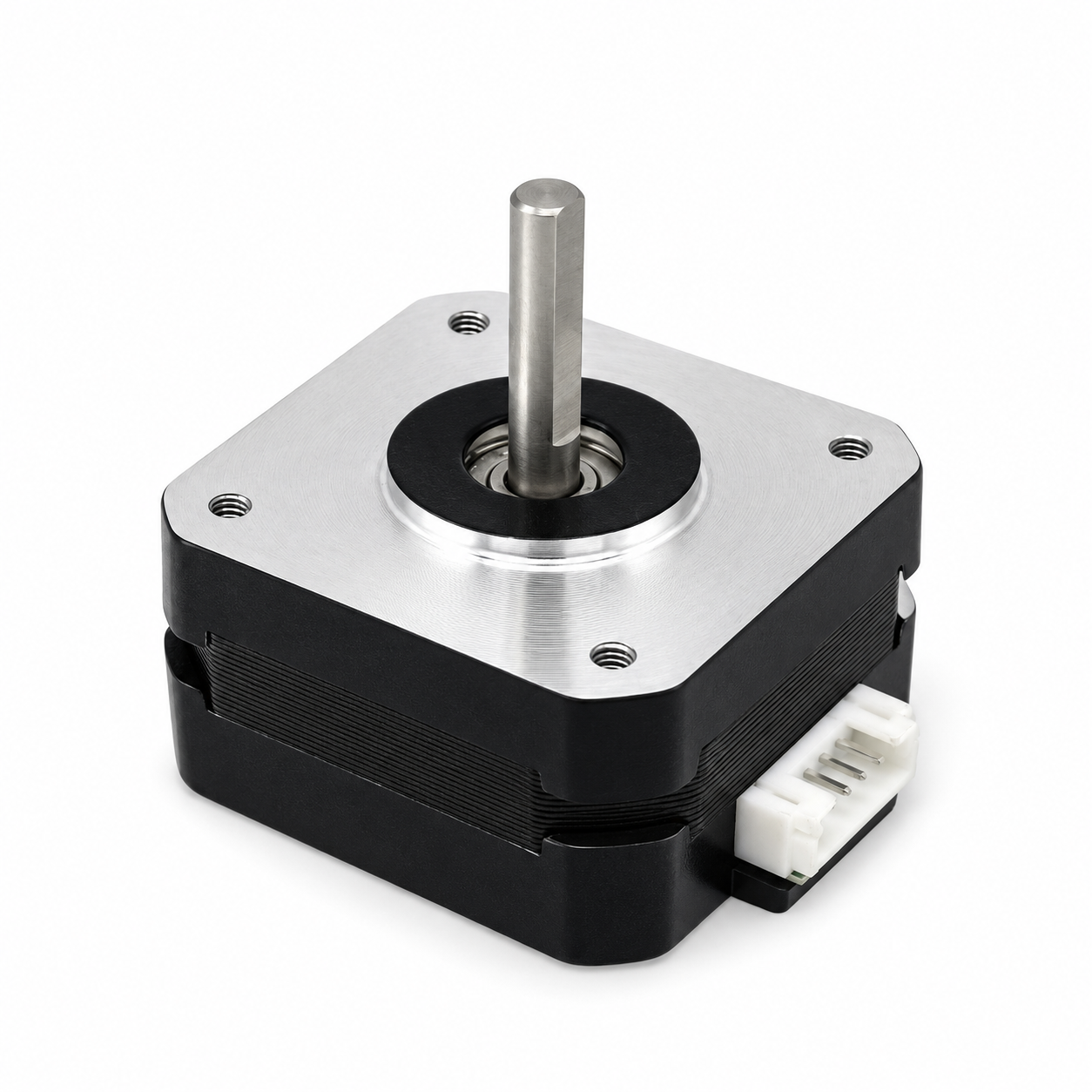

Shaft: Ø5mm D-cut, extension 22mm; flat length 18mm, flat dimension 4.5mm
Mounting: 31mm hole pitch; 4-M3, depth ≥3mm; locating boss Ø22mm × 2mm

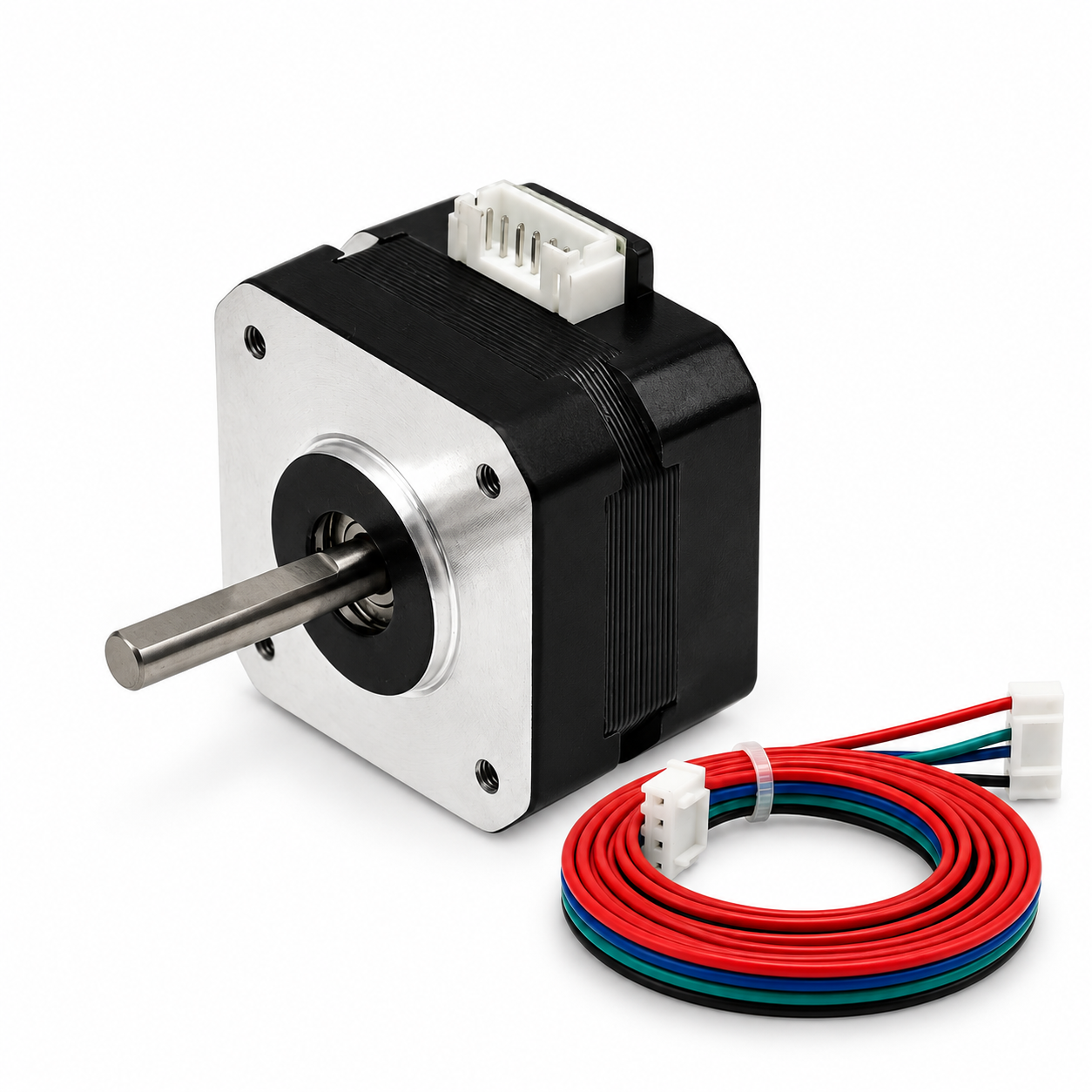

Cable: four 500mm UL1007 AWG24 leads
Connectors: motor-end PHR 6-position housing (PH-6 on drawing); equipment-end XH2.5 4-pin
Motor weight: 0.2kg
WIRING
Pins 1 and 4 form one phase; pins 3 and 6 form the other. Connector pin-view orientation and tolerances follow the 42BYGH2303-A-22DPH factory drawing.
APPLICATION GUIDANCE
For compact positioning mechanisms, lightweight feed mechanisms and compact instruments. Suitability must be checked against actual load, speed and driver settings.
CUSTOMIZATION
Shaft machining, cable length and connector options can be discussed. Pulleys, gears, gearboxes, brakes and closed-loop encoders require a separately confirmed configuration and are not included in this standard motor.
FAQ
Q: What is the full factory model?
A: 42BYGH2303-A-22DPH; sales model 42BYGH2301.
Q: Can the motor be connected directly to a DC 12–24V supply?
A: Use a suitable current-regulated stepper driver. The winding rated voltage is DC 4.2V and is different from the driver supply voltage.
Q: How do I confirm price and availability?
A: Send the model, quantity and configuration through the inquiry form. Price, availability and delivery time are confirmed for the order.
